Beacon

A smart home operating system designed around reliability, visibility, and recovery — not just device control.

Most smart home apps fail at the moment you need them most: when your network changes.

Try Beacon

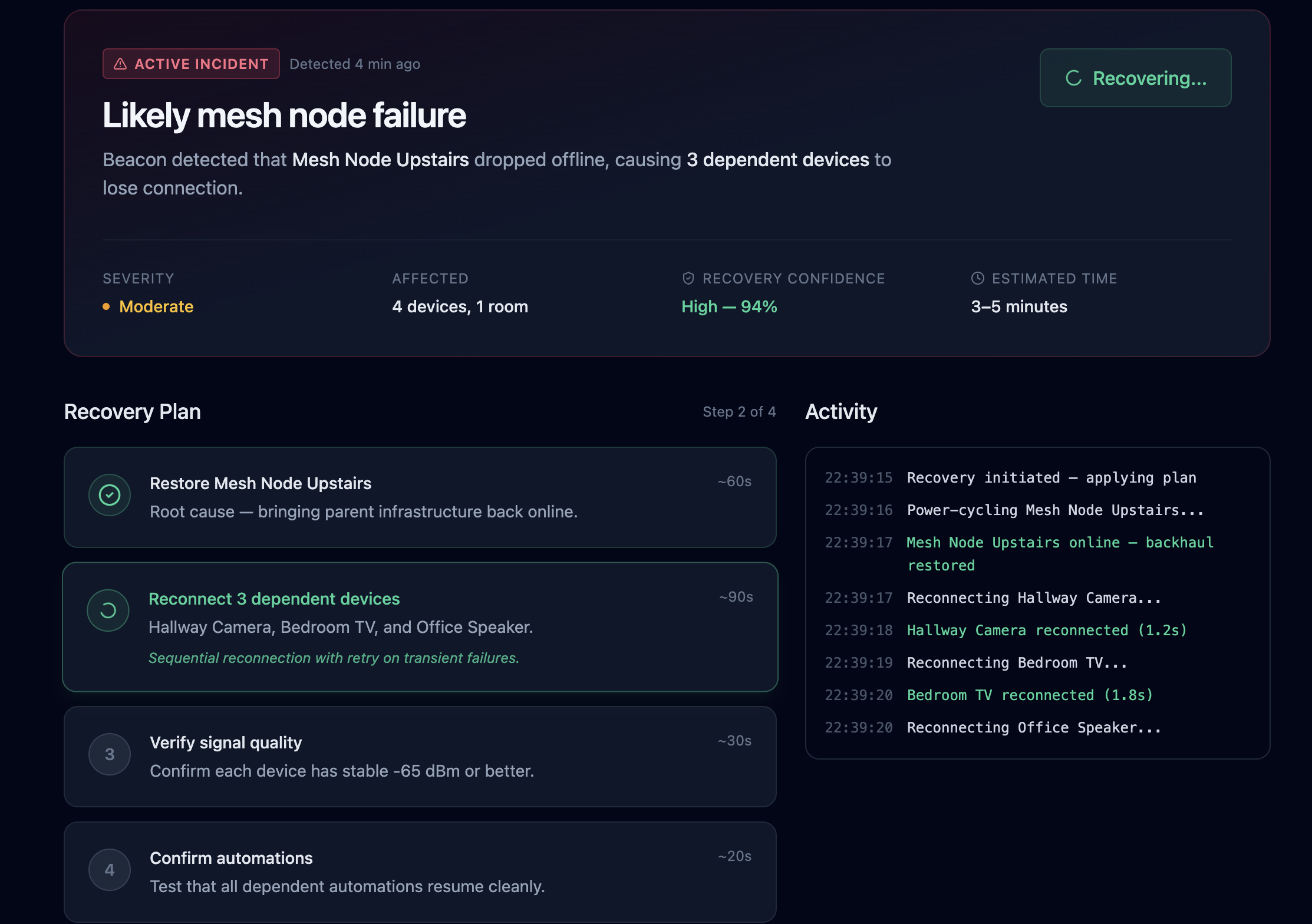

Beacon Recovery Center showing an active incident, recovery plan, and live progress log.

Overview

The core insight behind Beacon was personal: after my ISP technician visited a few times, the network got reset — and I spent the rest of the evening individually re-pairing 15 Ring cameras, Alexas, smart TVs, and a Google Home through their respective apps. Each one took five minutes of fumbling through different setup flows. None of the apps acknowledged that this was happening across my whole house. None of them could fix it in bulk.

The smart home category is dominated by:

Beacon answers a different question:

“What is actually happening in my home right now, and can I trust it?”

It is built around four pillars:

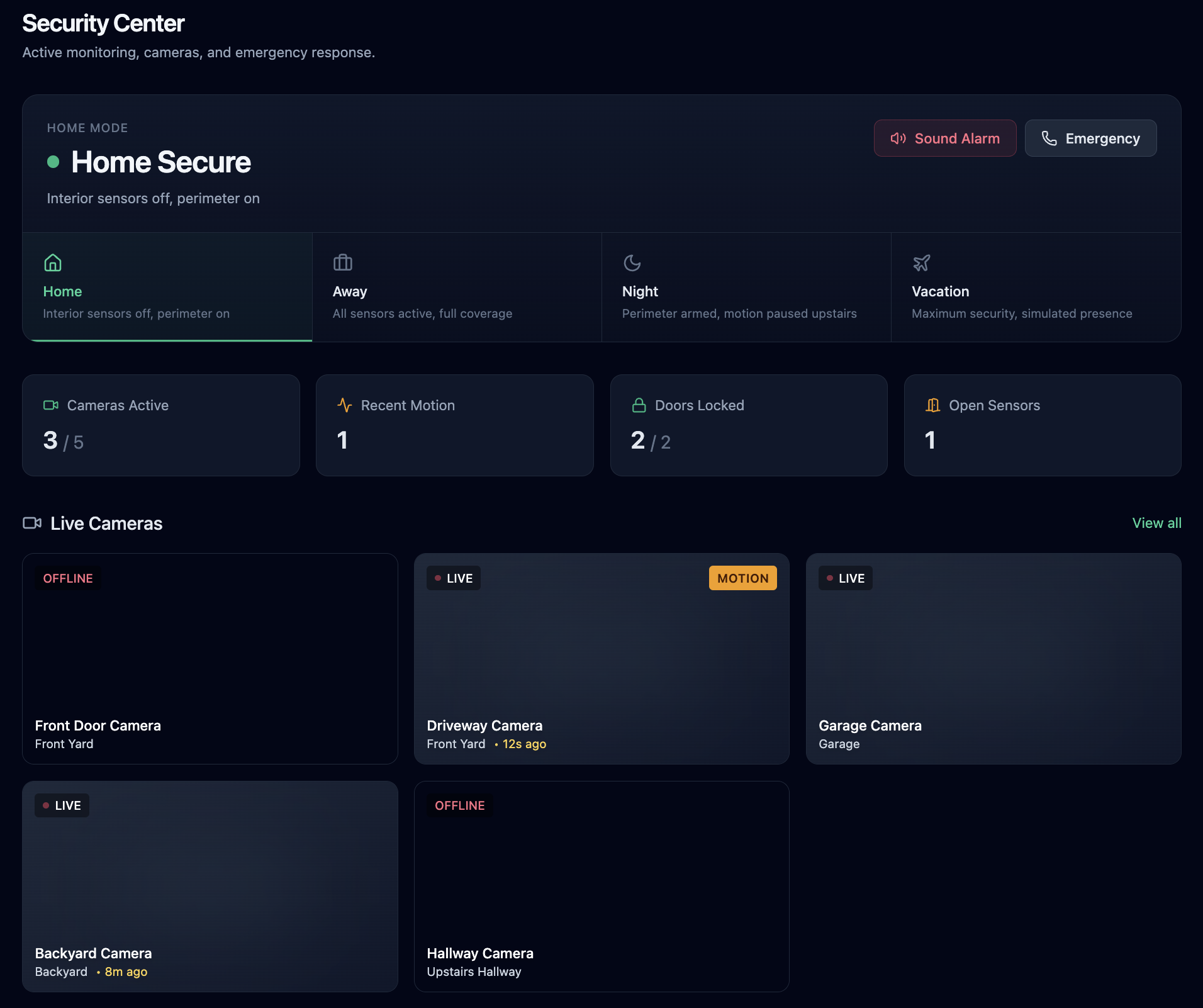

Beacon's Security Center showing device management in a unified control panel.

What I Focused On

This project focused less on device-by-device feature parity and more on operational coherence across the whole home.

The primary design goal was to make smart home infrastructure feel legible, trustworthy, and recoverable — even when (especially when) something goes wrong.

Key areas:

Product & UX Decisions

Operational thesis, not device thesis

Most smart home apps organize information by device. Beacon organizes by system state.

The Home Overview leads with two paired vital signs — Home Health (is the infrastructure working?) and Home Status (is the home secure?) — followed by a Quick Status Grid of operational metrics: cameras online, doors locked, Wi-Fi strength, automations running, last sync time.

This was deliberate. The user’s first question on opening the app is rarely “what color is my smart bulb?” It’s “is everything OK?” — and the app should answer that in one glance.

Recovery Center as the differentiator

The original frustration that prompted this project — re-pairing 15 devices after a network reset — became Beacon’s signature feature.

The first version of the Recovery Center I designed was, in hindsight, a diagnostic dashboard. It showed a dependency graph and an empty queue. It was visually correct but emotionally inert.

The breakthrough was reframing recovery as a workflow rather than a view. The current design opens with an incident header that names the problem (“Likely mesh node failure”), states severity, affected count, recovery confidence (94%), estimated time, and a recommended next step. The main panel is a four-step Recovery Plan that runs sequentially with live state per step. A console-style activity log streams progress on the side.

When recovery completes, the summary is honest: “3 recovered cleanly, 1 after retry, 1 automation needs review.” Most apps would say “Done!” — Beacon tells the truth, because trust is the product.

The dependency graph still exists, but it’s been demoted to a collapsible “Technical details” panel. Useful, but not the centerpiece.

Dependency awareness

When devices fail, they often fail in patterns. A mesh node goes down, and four dependent cameras drop with it.

Beacon’s Recovery Center is built to surface this causality explicitly:

“Hallway Camera unreachable because Mesh Node Upstairs is offline.”

Other apps make the user piece this together themselves across 15 disconnect notifications. Beacon groups them, names the root cause, and resolves them in the correct order.

Placement Validation in the Add Device flow

The Add Device flow has a step that — as far as I can tell — no consumer smart home app currently has: Placement Validation.

After Beacon connects to a new device, it runs a diagnostic from the device’s current location and gives a verdict:

“Signal is acceptable, but could be better. Current signal is -72 dBm (Weak). Moving 6–10 feet closer to Mesh Node Upstairs would improve reliability and reduce dropouts.”

The flow shows signal, latency, and mesh coverage measurements, and recommends a room based on signal-pattern matching with neighboring devices.

This step exists because the most common reason a smart device “doesn’t work right” is poor placement — but the user only finds out weeks later, after the camera has been dropping clips for a month. Beacon catches it before the device is even mounted.

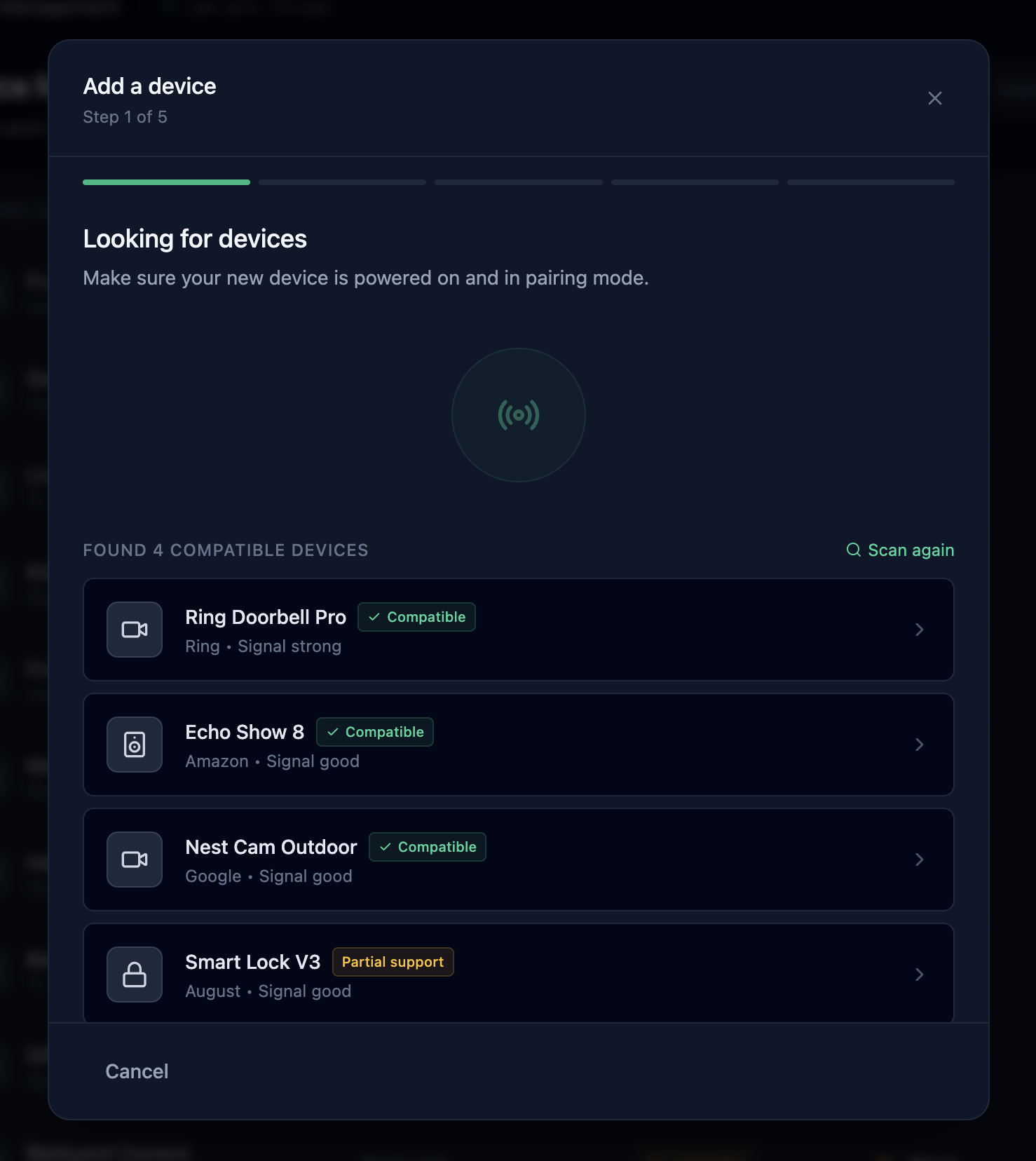

Add Device flow step 1 — selecting a device type to pair.
Add Device flow step 2 — connecting to the new device.
Add Device flow step 3 — Placement Validation runs signal, latency, and mesh coverage diagnostics from the device's current location.
Add Device flow step 4 — room recommendation based on signal-pattern matching with neighboring devices.

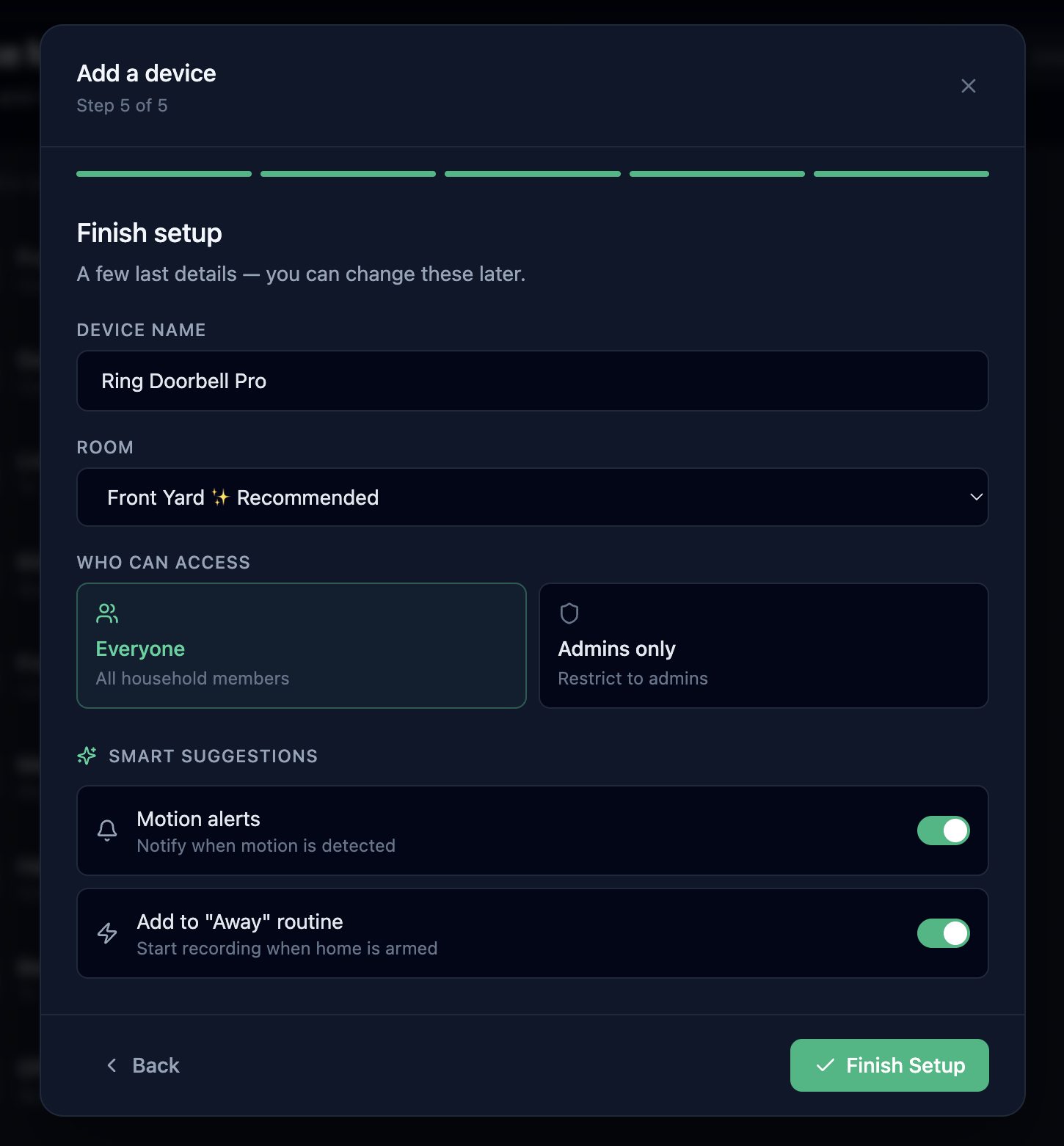

Add Device flow step 5 — confirmation that the device has been added to the home with a verified placement.

Live state on the Overview

Early versions of Beacon felt accurate but cold — like a server status page. The home wasn’t alive in it.

Adding a Live Activity feed alongside Critical Alerts — “Motion detected 12s ago,” “Sarah arrived home,” “Front Door unlocked” — gave the Overview an emotional pulse without sacrificing operational rigor. The home feels inhabited, not just monitored.

Two layers of “security”

Smart home security means two completely different things:

Most apps muddle these together. Beacon separates them deliberately:

This was a small information-architecture decision with a big legibility benefit.

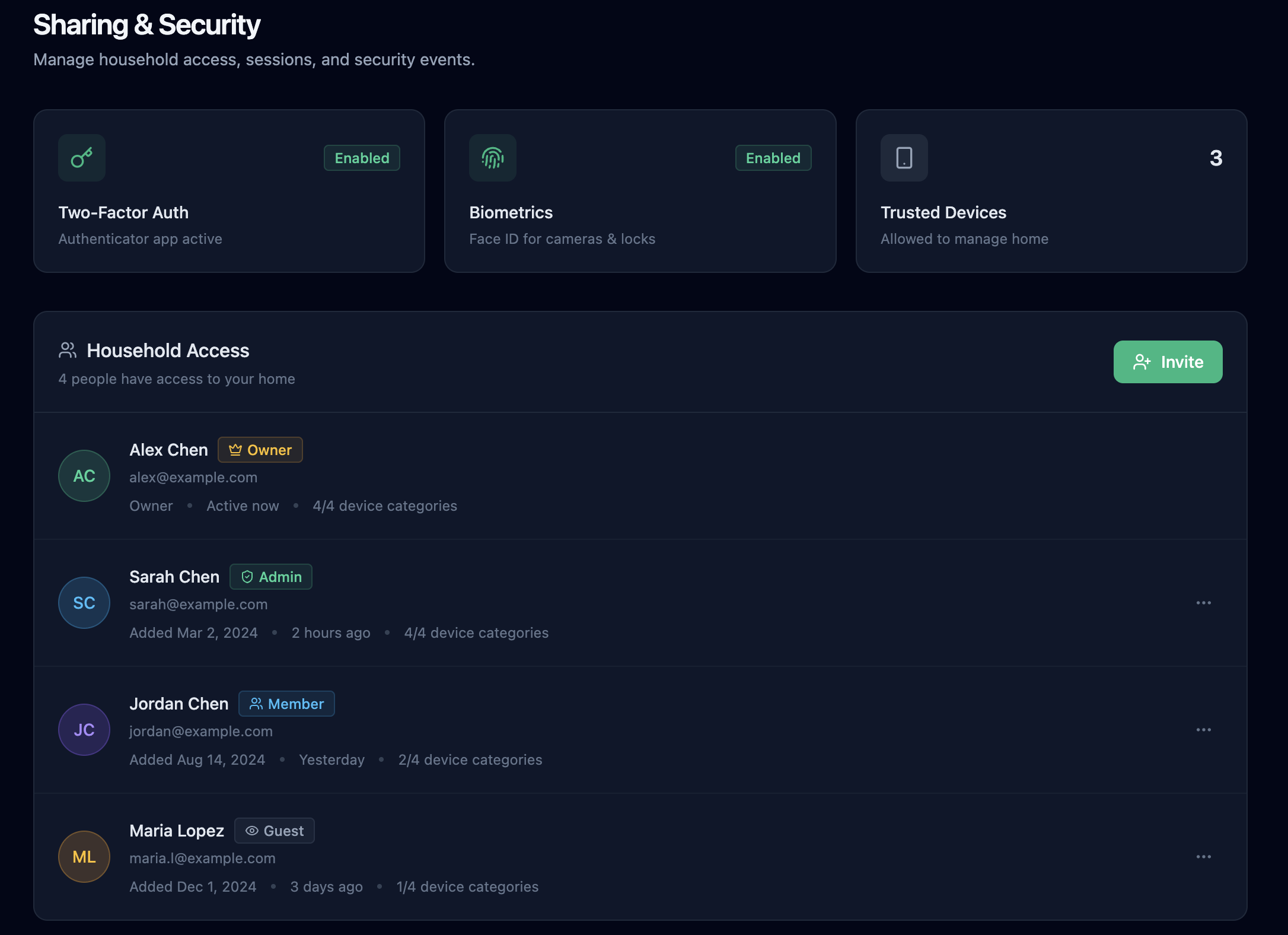

Beacon Sharing & Access screen showing household members with roles, active sessions, and security events.

Device view as a unified surface

Clicking any device — from the Devices list, the Security Center’s live cameras, or a notification — opens the same Device View. Three tabs: Live, Activity, Settings.

For cameras, the Live tab includes a simulated feed with REC/LIVE indicators, controls for mute, two-way talk, snapshot, and clip recording, plus a 24-hour Connectivity Timeline that visualizes online / unstable / offline states. When the device is offline, the Live tab shows a clear handoff to the Recovery Center instead of an empty black box.

Settings is grouped by concern — General, Notifications, Camera-specific (night vision, motion sensitivity), Sharing, Advanced — with destructive actions visually de-emphasized.

Visual & Interaction Design

The visual system uses:

The goal was making operational data feel:

Interaction principles

Beacon's home screen showing a summary of the home's health and status, showcasing the visual design system.

System Thinking

Beacon is currently a frontend concept prototype, but it was designed against realistic operational constraints. The product assumes integration with:

The hard problem isn’t displaying status — it’s modeling dependency and causality across heterogeneous devices and protocols. A camera dropping offline could mean many things: the device, its parent mesh node, the upstream ISP, an authentication failure, a firmware bug. Beacon’s job is to triage that automatically and present the most likely cause first, with a recovery plan attached.

That triage layer — not the UI — is the real engineering challenge if this were built. The design is structured around its existence.

Trade-offs

This portfolio version intentionally uses:

The goal was prioritizing:

…over backend completeness.

Why this approach
A smaller set of highly-polished scenarios — a network change, a placement check, a guided recovery — created a stronger demonstration of Beacon’s thesis than a generic “control your bulbs” demo would have.

Result

Beacon became an exploration of how an industry stuck on device-level features could be reframed around system-level trust. The Recovery Center and Placement Validation flows in particular are the kinds of moments that justify the product’s existence — they solve problems other smart home apps don’t even acknowledge.

The project reflects my interest in building products where:

…all reinforce each other instead of existing separately.

— Dan Thoreson
